1. Overview of Electric Control Valve

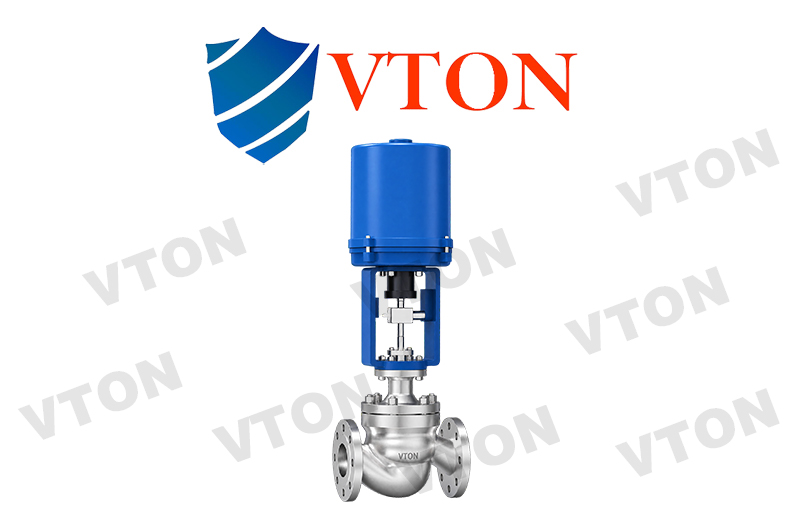

The electric control valve from VTON integrates advanced electric actuators with durable valve bodies to achieve high-precision regulation of fluid parameters. These valves are powered by AC 220V and controlled using 4-20mA or 0-10mA signals, enabling seamless automation in industrial systems.
Key Features:
- Sensitive and precise control for continuous adjustment of pressure, flow, and liquid levels.
- Easy integration into automation systems with rapid response and reliable performance.
- Suitable for various operating conditions, including high and low temperatures, with optional configurations.
2. Performance Indicators
| Indicator | Electric | Pneumatic |
|---|---|---|
| Basic Error (%) | ≤1.0 | ±1.5 |
| Backlash (%) | ≤1.0 | ≤1.5 |
| Dead Zone (%) | ≤1.0 | ≤0.6 |
| Starting/Ending Deviation (%) | ±2.5 | ±2.5 |
| Rated Stroke Deviation (%) | ≤2.5 | ±2.5 |
3. Technical Parameters
- Valve Body Type: Straight-through cast ball valve body
- Valve Core Type: Unbalanced single-seat plunger valve core
- Nominal Diameter: DN20~200 NPS 3/4〞~ 8〞
- Nominal Pressure: PN16 ~ 100 / CLASS 150LB ~ 600LB
- Connection Modes: Flange (FF, RF, MF, RTJ), Welding (SW, BW)
- Flange Distance: IEC 60534 compliant
- Valve Cover Types:
- Standard: -5℃ to 230℃
- Heat Sink: -45℃ to >230℃
- Low Temperature Extended: -196℃ to -45℃
- Bellows Sealed, Insulation Jacket
4. Material Options
| Valve Body Material | Nominal Pressure (MPa) | Temperature Range (℃) |
|---|---|---|
| Cast Iron (HT200) | 1.6 | -20 to 200 (Normal) / -15 to 250 (Heat Sink) |
| Cast Steel (ZG230-450) | 4.0, 6.4 | -40 to 250 (Normal) / -40 to 450 (Heat Sink) |
| Cast Stainless Steel (ZG1Cr18Ni9Ti, ZG0Cr18Ni12Mo2Ti) | 4.0, 6.4 | -40 to 250 (Normal) / -60 to 450 (Heat Sink) |
5. Additional Specifications
- Packing: V-shaped PTFE, flexible graphite packing
- Sealing Gasket: Metal clip graphite
- Actuators: V3810L series intelligent actuators, PSL series actuators
- Surface Finish: Green acrylic polyurethane enamel
- Flow Characteristics: Equal percentage
- Optional Features: Explosion-proof configurations (ExdⅡBT4)
